Design LRU Cache

Difficulty: Medium Source: awesome-low-level-design

Requirements

  1. put(key, value) -- insert key-value pair; evict least recently used entry at capacity
  2. get(key) -- retrieve value and promote to most recently used; return -1 if absent
  3. Fixed capacity set at initialization
  4. Thread-safe concurrent access
  5. O(1) time complexity for both get and put operations

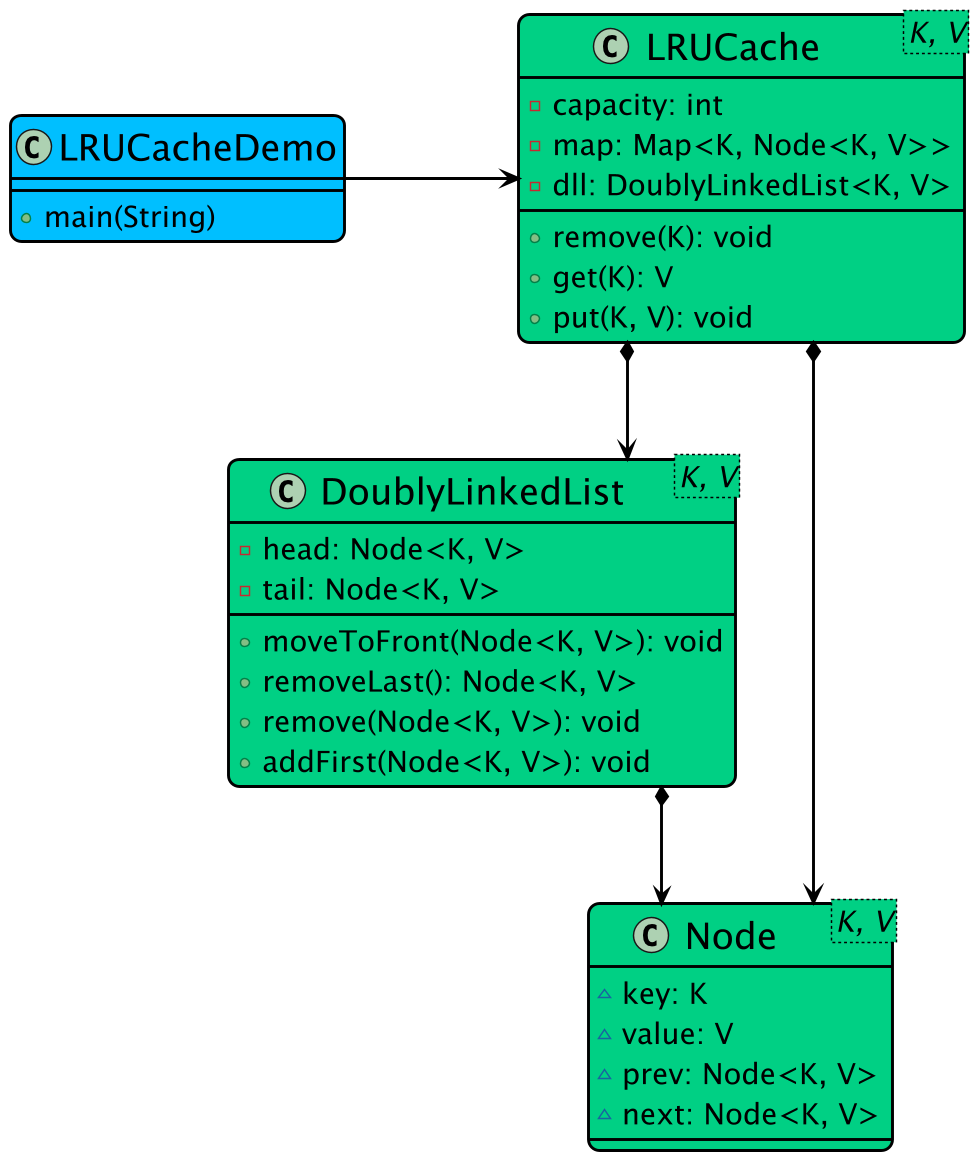

Class Diagram

Class Diagram

Classes, Interfaces and Enumerations

Class/Interface Description
Node Doubly linked list node: key, value, prev, next pointers
LRUCache HashMap + doubly linked list with sentinel head/tail nodes; synchronized get/put for thread safety

Helper methods within LRUCache:

  • addToHead -- insert node right after the head sentinel
  • removeNode -- detach a node from the list
  • moveToHead -- remove then re-insert at head (mark as most recently used)
  • removeTail -- evict the least recently used node (before tail sentinel)

Design Patterns Used

Pattern Application
HashMap + Doubly Linked List HashMap provides O(1) lookup; doubly linked list maintains access order for O(1) eviction
Sentinel Nodes Dummy head and tail nodes simplify edge-case handling for insertions and deletions

Code Implementations

Language Source Code
Java View on GitHub
Python View on GitHub
C++ View on GitHub
C# View on GitHub
Go View on GitHub
